Used XCMG GR2153 Motor Grader 164kW High Power Land Leveling

Fob Price: $27000

Operating Weight	16500 kg
Engine Model	Cummins QSB6.7/SC7H220.1G4
Engine Rated Power	162-164kW
Blade Size (L×H)	4270×610 mm
Maximum Traction Force	≥85 kN
Maximum Travel Speed	38 Km/h
Blade Rotation Angle	360°
Minimum Turning Radius	7.3 m

Inquire Now

WhatsApp

Product Description

The used XCMG GR2153 motor grader is a high-performance engineering machine independently developed by XCMG for global road construction and land leveling. It has an operating weight of 16500kg and is equipped with a 4270×610mm large-size blade with 360° full rotation and loaded rotation function, which can meet the high-efficiency leveling needs of various complex working conditions. Powered by the original Cummins QSB6.7 national III EFI engine, the rated power is 164kW, with strong power, large torque reserve coefficient and low specific fuel consumption at the rated point, realizing energy saving and environmental protection. The electro-hydraulic control power shift transmission has 6 forward gears and 3 reverse gears, matching the hydraulic torque converter to achieve the best power matching, short start-up acceleration time and strong low-speed torque output. The articulated frame is matched with front wheel steering, with small turning radius and flexible mobility, adapting to narrow space operation. Adopting international supporting hydraulic parts and full hydraulic control of blade movement, the working reliability is high. The three-section drive axle is equipped with NO-SPIN self-locking differential, and the optional herringbone pattern tires can improve the adhesion by about 10%. The luxurious sealed cab is equipped with heating and cooling air conditioning, three-stage vibration reduction of engine, cab and seat, and the overall noise is greatly reduced, which improves the driving comfort.

Product Parameter

Operating Weight	16500 kg
Engine Model	Cummins QSB6.7/SC7H220.1G4
Engine Rated Power	162-164kW
Blade Size (L×H)	4270×610 mm
Maximum Traction Force	≥85 kN
Maximum Travel Speed	38 Km/h
Blade Rotation Angle	360°
Minimum Turning Radius	7.3 m

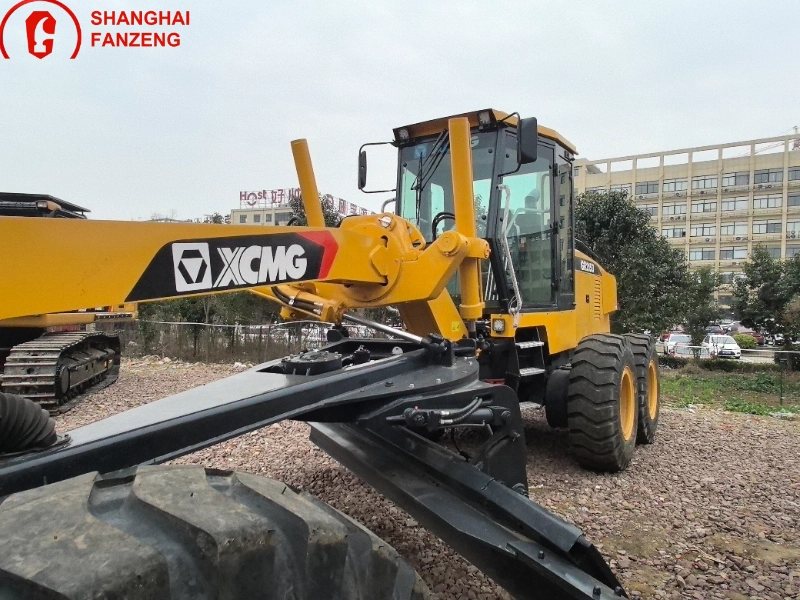

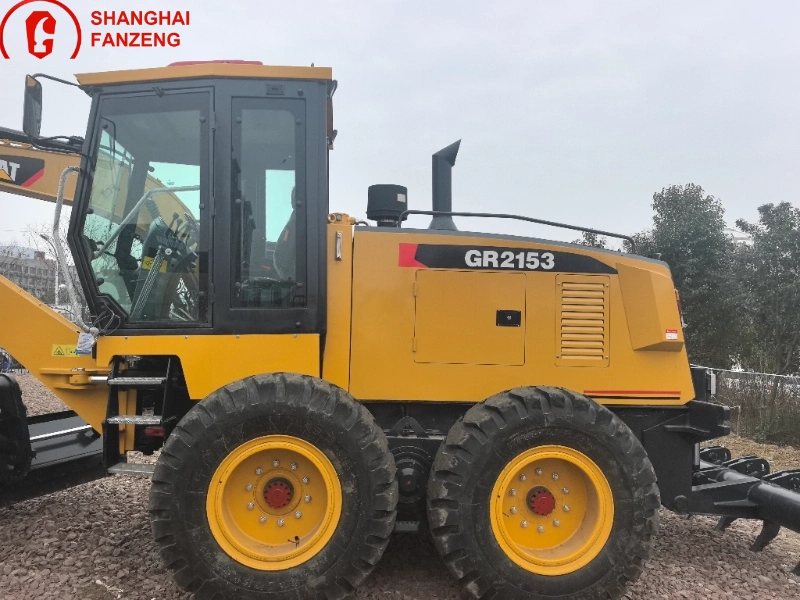

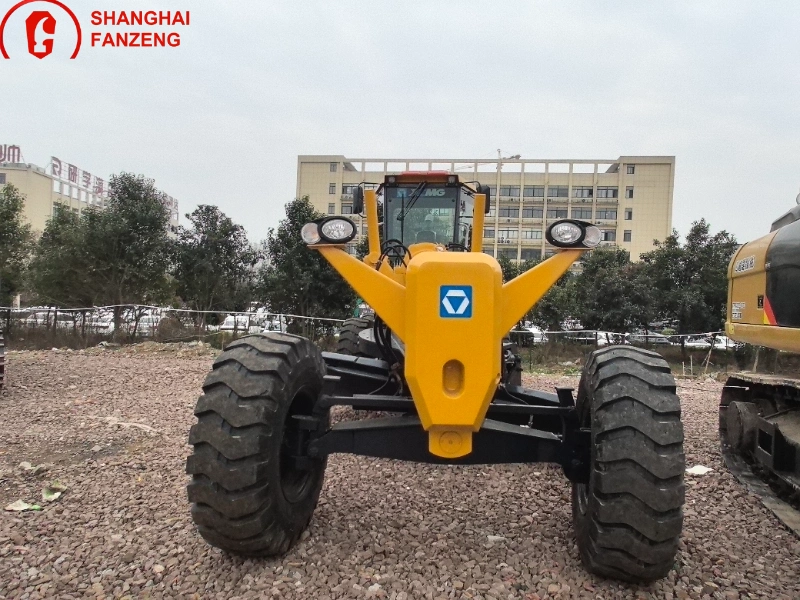

Product Picture

FAQ

What foreign trade payment methods are supported for this product? What is the deposit ratio and relevant requirements?

Supports T/T, L/C, D/P mainstream foreign trade payment methods, with a 30% deposit ratio for locking equipment, arranging inspection and transportation matters, reserved for 7 working days, which can be deducted from the final payment later to ensure transaction safety.
Compared with other motor graders of the same level, what are the core competitive advantages of this product?

Core advantages: optional original engines of multiple models to adapt to different needs, 360° blade with loaded rotation for high operation efficiency, reliable electro-hydraulic control performance, strong energy saving, low noise and comfort, flexible articulated frame, adaptable to all working conditions with multiple attachments, fast global after-sales response and high retention rate.
Is the operation difficulty of this product suitable for novices? Is the control light during long-time leveling operations?

Easy to operate and suitable for novices, the electro-hydraulic control transmission is light to shift, the blade movement is fully hydraulically controlled with high precision, the cab is comfortable with wide vision, the operation handle layout is reasonable, the three-level vibration reduction design reduces fatigue, and bilingual prompts are supported for quick mastery.
