Low Cost Used XCMG XS223J Vibratory Roller

Fob Price: $19000

Engine Model	Shangchai SC7H190.2G3
Net Power	140 kW
Operating Weight	22000 kg
Compaction Drum Width	2130 mm
Excitation Force	374/290 kN
Vibration Frequency	28/33 Hz
Max Travel Speed	9.4 km/h
Theoretical Gradeability	30%

Inquire Now

WhatsApp

Product Description

The used XCMG XS223J vibratory roller is a high-performance 22-ton single-drum compaction workhorse, powered by the original Shangchai SC7H190.2G3 diesel engine that delivers 140kW net power at 1800 rpm. Equipped with XCMG’s closed hydraulic drive system and dual-frequency dual-amplitude vibration mechanism, it features adjustable excitation force and vibration frequency , realizing precise compaction for different materials and construction layers. This model excels in diverse heavy-duty scenarios—including high-grade highway subgrade compaction, airport pavement construction, dam engineering, port yard foundation treatment and municipal road construction. With a 2130mm wide compaction drum, 22000kg operating weight and 30% climbing capacity, it ensures uniform compaction efficiency and strong adaptability to complex terrain.

Product Parameter

Engine Model	Shangchai SC7H190.2G3
Net Power	140 kW
Operating Weight	22000 kg
Compaction Drum Width	2130 mm
Excitation Force	374/290 kN
Vibration Frequency	28/33 Hz
Max Travel Speed	9.4 km/h
Theoretical Gradeability	30%

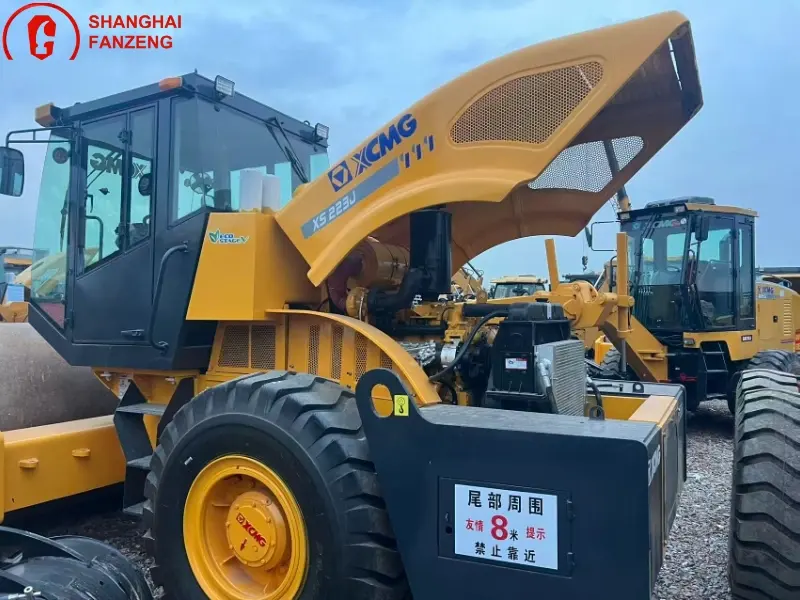

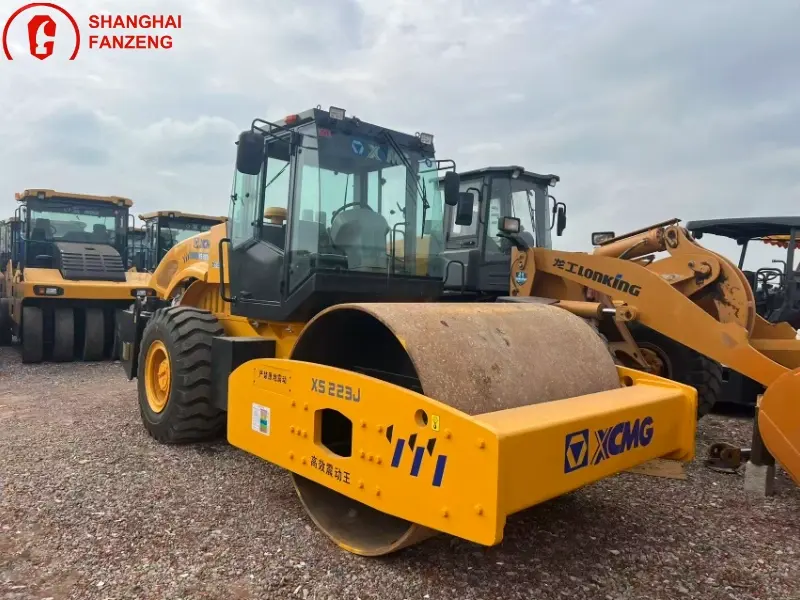

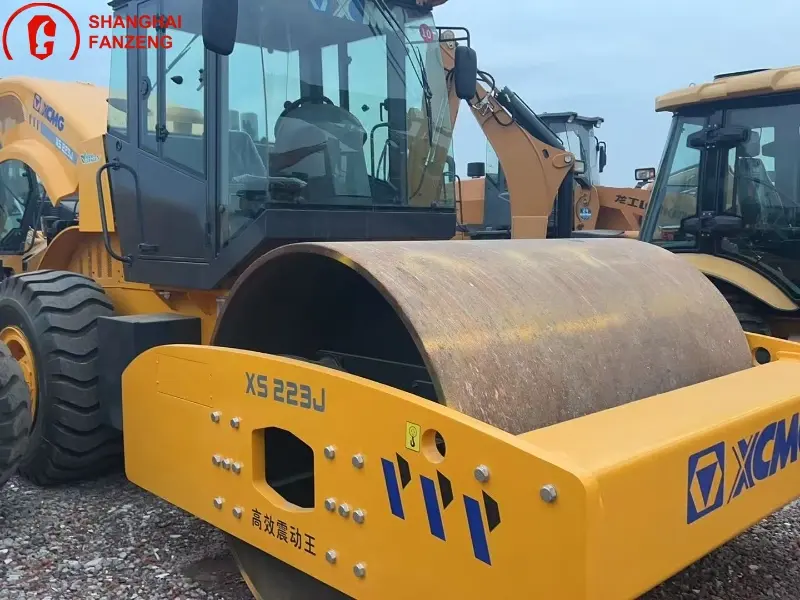

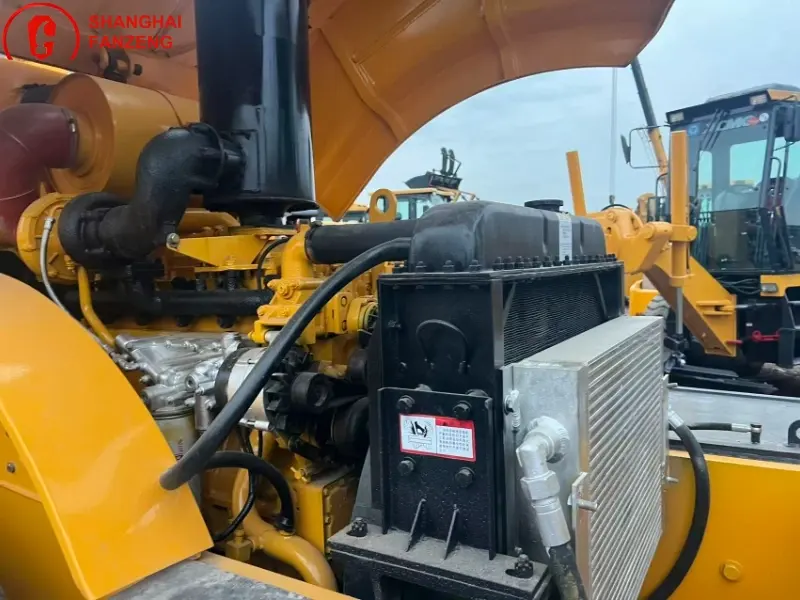

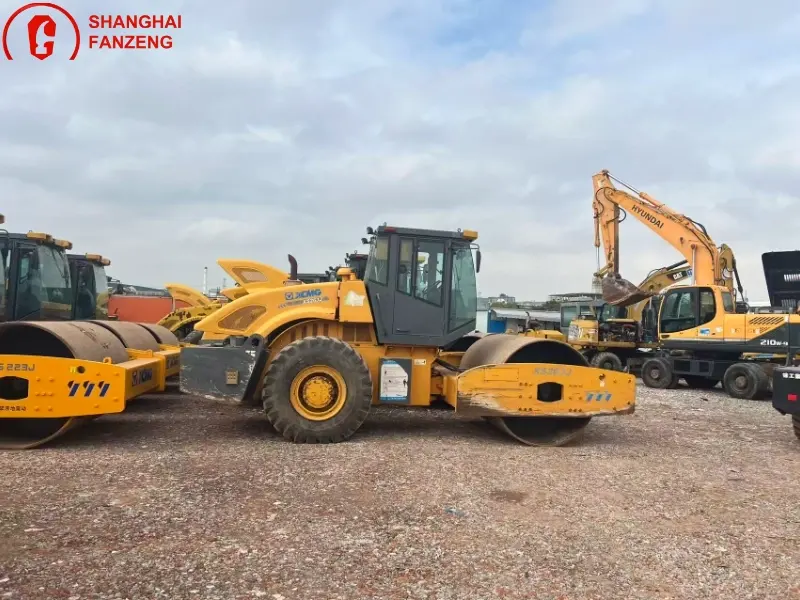

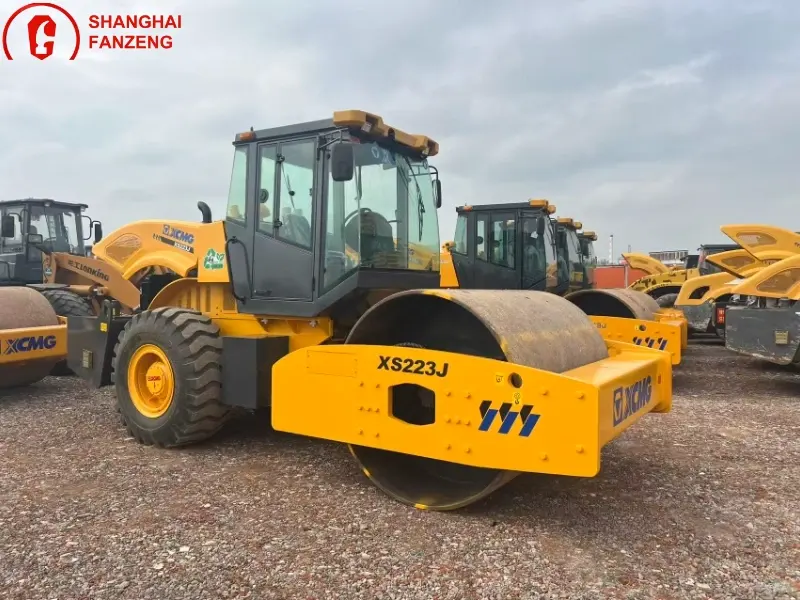

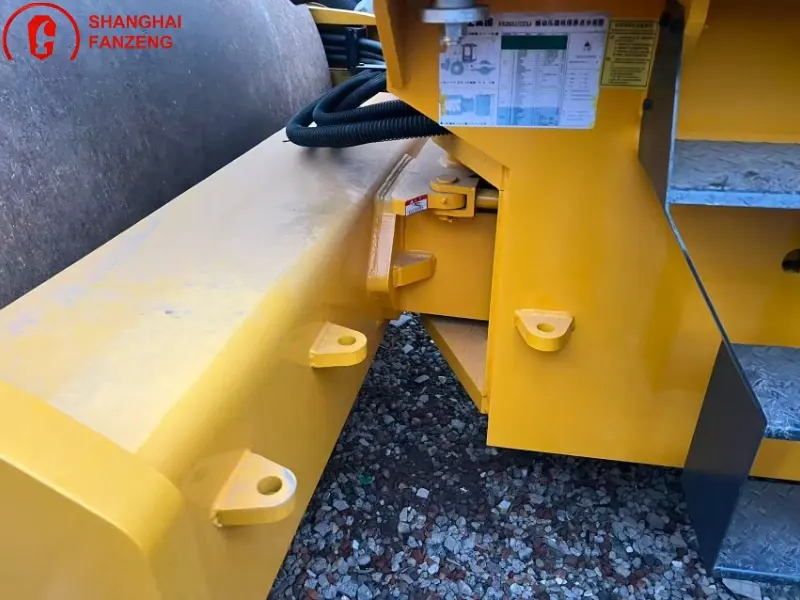

Product Picture

FAQ

Which construction materials is this model suitable for?

Suitable for gravel, clay, moraine soil, blasting rock, stabilized soil and other materials, capable of compaction for different layers of highway subgrade and foundation. Dual-frequency dual-amplitude design matches material requirements flexibly.
Is daily maintenance difficult and are spare parts easy to purchase?

Daily maintenance is convenient with centralized points, oil and filter replacement can be done on the ground. XCMG is a world-famous brand with widely available spare parts, core hydraulic parts and drum parts have strong versatility.
Is there any room for price negotiation?

The price can be slightly negotiated based on the payment method and pickup time.
